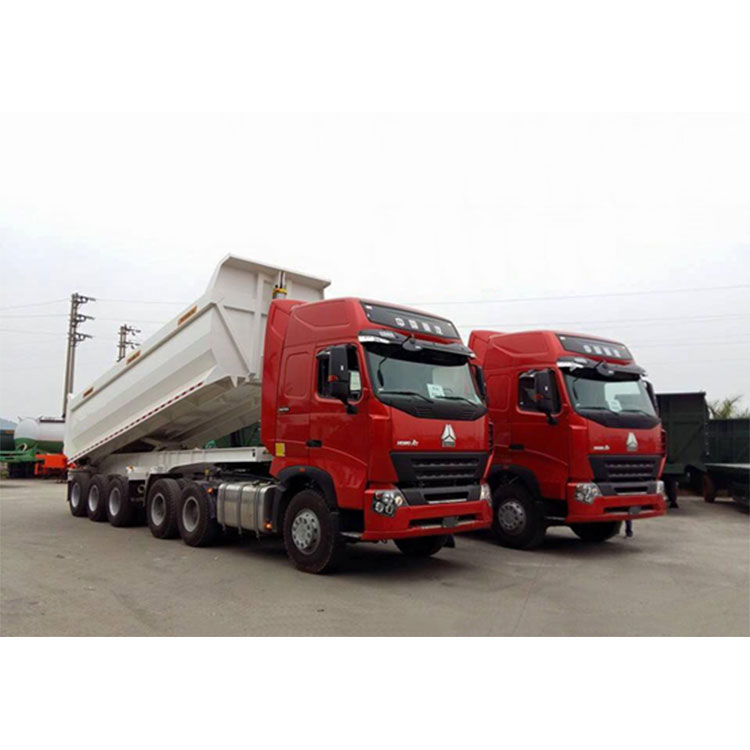

Três eixo U Shape Tipper semi trailer

O reboque de três eixos U de três eixos U em 2024 adota uma suspensão rígida ativa ativa com três eixos. Um bloco de balanço de massa é instalado entre as molas de placa de aço dianteiro e traseiro, o que pode fazer com que a deflexão das molas de placa de aço dianteiro e traseiro mude igualmente. O eixo traseiro é usado para equilíbrio de força, atendendo ao transporte de vários bens especiais.

Enviar consulta

Descrição do produto

Three axle U shape tipper semi trailer

Large loading capacity: The design of the tipping bucket carriage allows it to accommodate a large amount of bulk materials, improving transportation efficiency.

Easy and fast unloading: With the control of the hydraulic system, the unloading operation can be completed in a short time, reducing working time.

Adjustable unloading angle: According to actual needs, the unloading angle can be adjusted to more accurately unload materials and reduce waste.

Product Parameter

THREE AXLES U SHAPE TIPPER SEMI TRAILER FOR TRANSPORT SAND AND GRAIN
Tare Weight	8000-11500KGS
Payload	35000-45000KGS
Overall Length	7800-10500mm
Overall Width	2420-2465mm
Dumper Body
Volume	18m3 , 25m3 , 30m3
Body Sheet	6-8mm steel sheet
Main Parameters
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B; Welded by automatic submerged-arc processes; Top Flange: 14mm Width: 140mm; Middle Flange: 6mm; Bottom Flange: 16mm Width: 140mm;
Axle	3 axles Brand Name: BPW or FUWA
Hydraulic System	One set of HYVA cylinder
Suspension	Mechanical suspension
Spring	Leaf spring or air bag
King Pin	JOST brand 2" Bolt-in
Landing Gear	JOST brand Two-speed, manual operating
Wheel Rim	8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5
Tyre	11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks
Painting	Complete chassis sand blasting to clean rust; 1 coat of anticorrosive prime; 2 coats of final paint
Accessories	One standard tool box
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Product Description

SINOCTM TIPPER SEMI TRAILER adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. To make sure the servise life of the semi trailers, all the apare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.

For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition. For our tipper trailers, we can design the U type, also called half pipe/ Square type / container flatbed dumper, the capacity range is from 30 ton to 100 ton.
